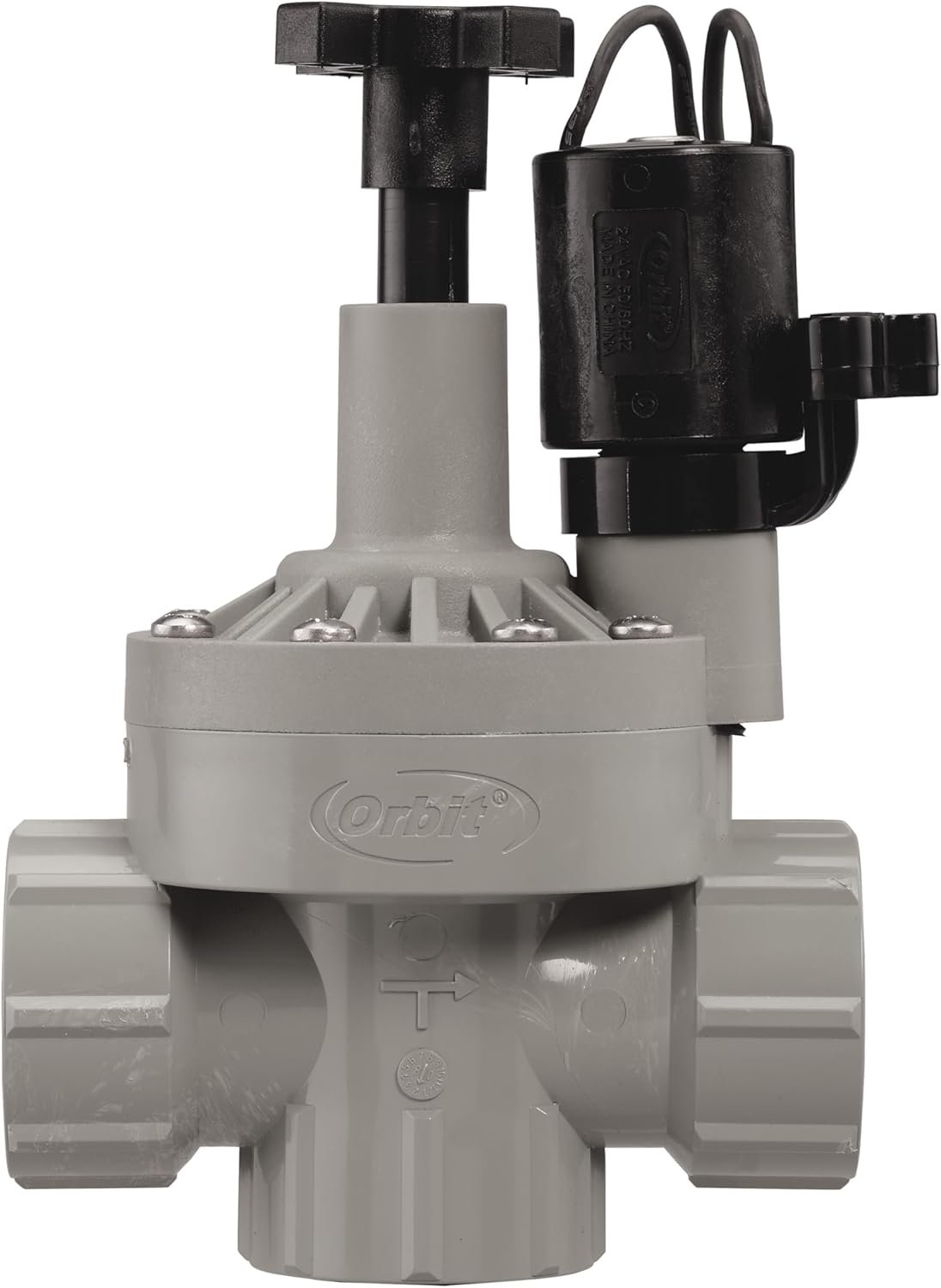

Upgrade your irrigation system with the Orbit 57020P 1" FPT 100 Series Automatic Inline/Angle Sprinkler Valve, a durable and versatile solution from the trusted Orbit Store. This valve features a compatible 1" FPT design that fits PVC fittings and works with most irrigation controllers, including smart options like Orbit B-hyve. With a convenient flow control dial, manual operation lever, and replaceable parts for long-term use, it's designed for reliability and easy installation in tight spaces. The 6-year warranty adds peace of mind, making it an excellent choice for both DIY gardeners and landscape professionals.
The Orbit 57020P sprinkler valve delivers reliable automatic irrigation control for small to mid-size yards. We’ve been using this inline valve to manage multiple watering zones, and it handles everything from summer heat to seasonal adjustments without skipping a beat. If you’re upgrading your existing system or building a new setup, this offers solid flow control and easy zone management at a practical price point.
Disclosure: As an Amazon Associate, we earn from qualifying purchases. This means when you purchase through links on this page, we may earn a small commission at no extra cost to you.
Table of Contents
We needed better zone control for our lawn after noticing some areas were getting drenched while others stayed dry. Manual timers weren’t cutting it, and we were tired of adjusting sprinklers every few days based on weather changes.
That’s when we installed the Orbit 57020P sprinkler valve into our existing irrigation system. This automatic inline valve gave us precise control over each zone, and the built-in flow control dial made balancing water pressure across the yard straightforward. The sprinkler valve connects directly to standard Schedule 40 PVC pipe with its 1-inch female pipe thread fitting, which meant we didn’t need special adapters or fittings.
What really sold us was the flexibility. You can use either the bottom or side inlet depending on your setup, and the included plug seals whichever port you’re not using. The 24V AC solenoid works with any standard irrigation controller, including smart systems like Orbit’s B-hyve. The manual on/off lever is incredibly handy for testing zones or flushing lines without firing up the whole controller.

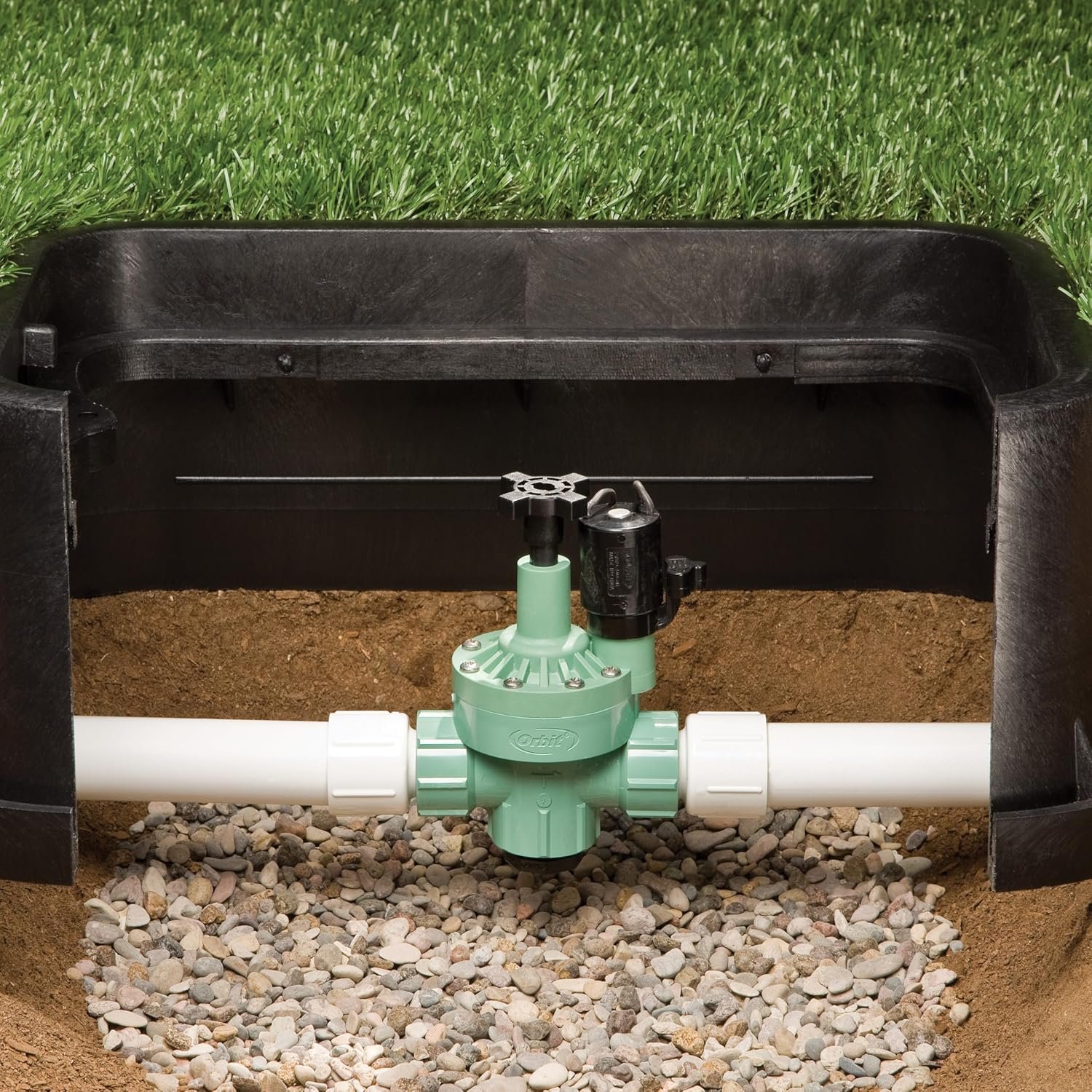

Durability matters when you’re burying equipment underground or mounting it in valve boxes exposed to rain, heat, and freezing temps. The replaceable solenoid (model 57241) and diaphragm (model 57225) mean you can service this valve without ripping out the entire unit. At about 1.5 pounds, it’s light enough to handle solo but feels solid enough to last multiple seasons. The 6-year warranty backs that up.
What We Honestly Loved
The build quality on this sprinkler valve is exactly what we needed for outdoor exposure. The valve body is sturdy plastic that doesn’t corrode or crack under sun exposure, and all the internal components—solenoid, diaphragm, flow control stem—are designed for long-term serviceability. Even after a full season buried in a valve box that sees rain, heat, and the occasional freeze, everything still operates smoothly. The fittings seal tight without excessive Teflon tape, and we haven’t experienced any leaks or pressure drops.
Setup was straightforward, even for us as DIYers without plumbing backgrounds. The 1-inch female pipe thread connects to standard PVC fittings, and the dual inlet design (bottom or side) meant we could fit the sprinkler valve into a tight corner of our valve box without awkward angles. The manual lever is a game-changer—one of us can test a zone or flush debris while the other adjusts sprinkler heads. The flow control dial gives you real-time adjustment without shutting down the system, which is perfect for balancing pressure across zones with different head counts. According to the Irrigation Association, proper valve selection and flow control are critical for efficient water use, and this unit delivers both. If you’re upgrading other parts of your setup, check out our guide on lawn care equipment we’ve tested.
Real-world durability is where this inline sprinkler valve earns its keep. We’ve run it through a full summer of daily watering in 90°F+ heat, followed by fall rains and a few unexpected cold snaps. The solenoid responds instantly to controller signals, and the diaphragm hasn’t shown any wear or slow response. The valve handles standard residential water pressure (40–80 PSI) without issues, and the flow control dial stays put once adjusted—no drift or creep over time. Knowing we can replace the solenoid or diaphragm separately if needed (instead of buying a whole new valve) makes this a smart long-term investment for any irrigation system.
Setup & Care Tips
Getting the most out of your sprinkler valve comes down to proper installation and a bit of seasonal attention. Here’s what’s worked for us:

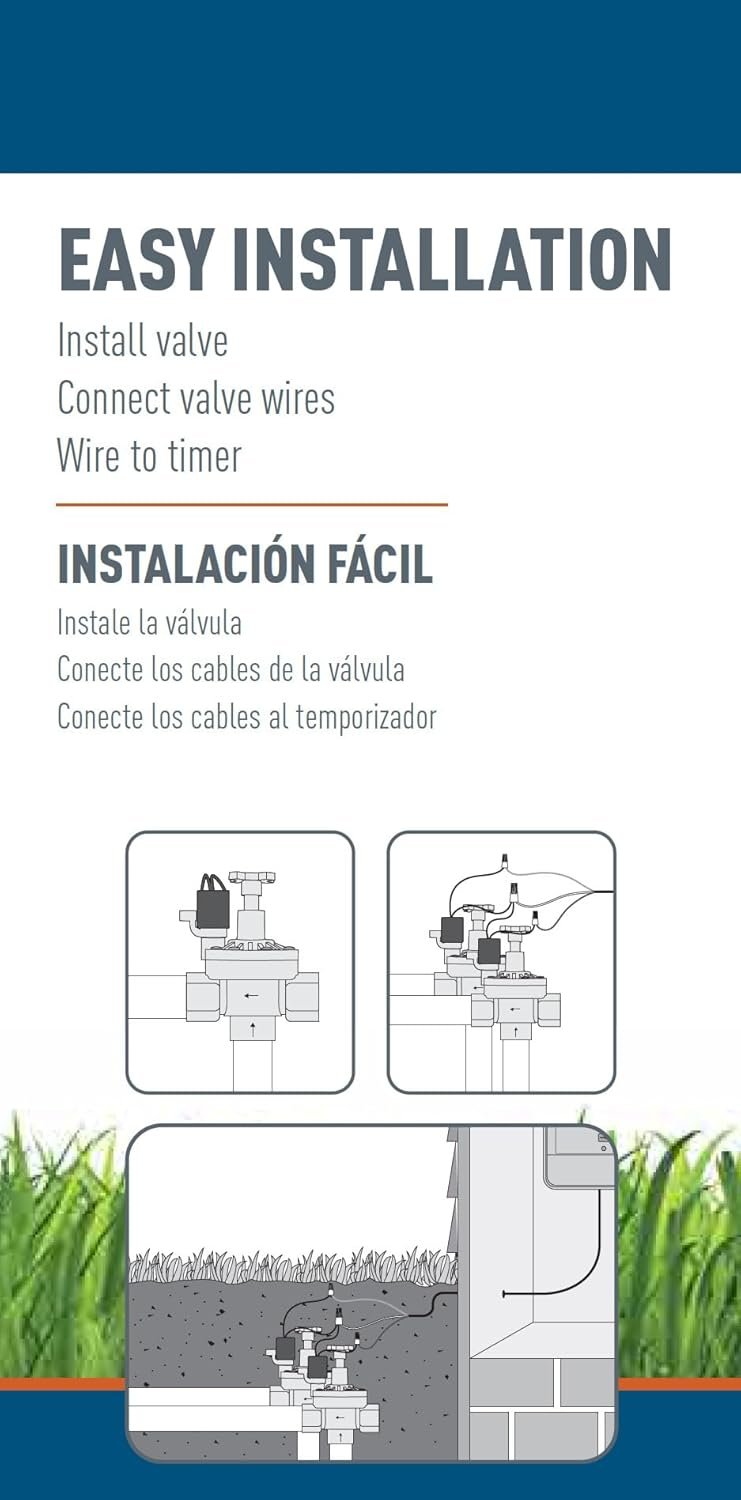

- Choose your inlet wisely: Before gluing PVC, dry-fit the valve and decide whether the bottom or side inlet works better for your space. Use the included plug on the unused port and hand-tighten it securely.
- Flush before connecting: Run water through your mainline to clear debris before attaching the valve. Dirt and sediment can damage the diaphragm or block flow.
- Protect from freezing: In cold climates, drain the system and remove the solenoid before winter. Store it indoors to prevent freeze damage. The valve body can stay in place if drained properly.
- Test monthly during season: Use the manual lever to check responsiveness and listen for smooth water flow. If you notice hesitation, inspect the diaphragm for wear or debris.
Is It Honestly Loved?
Yes—the Orbit 57020P sprinkler valve is a practical, reliable choice for homeowners managing small to mid-size irrigation systems. It’s ideal if you’re running 2–6 zones, need flexible installation options, and want the ability to service parts without replacing the whole valve. The built-in flow control and manual lever give you hands-on control that’s hard to find in this price range, and the compatibility with smart controllers means you can automate watering without being locked into one brand.
That said, this sprinkler valve isn’t designed for large commercial properties or high-flow applications beyond residential specs. If you’re running 10+ zones or need heavy-duty valves for constant use, you’ll want to look at industrial-grade options. For typical suburban yards with standard PVC irrigation setups, though, this hits the sweet spot of durability, ease of use, and serviceability. We’ve had zero regrets since installing ours, and the 6-year warranty gives us confidence it’ll keep performing season after season. Whether you’re dealing with summer heat, spring rains, or the occasional cold snap, this valve handles real-world conditions without fuss.
Check our latest Fresh Finds HERE
Curated with Passion, Shared with Love,
The HONESTLY LOVED Team
Frequently Asked Questions
Will this work with my existing irrigation controller?
Yes, the Orbit 57020P uses a standard 24V AC solenoid that’s compatible with virtually any residential irrigation controller, including Orbit B-hyve, Rain Bird, Hunter, and other major brands. Just wire it to an available zone terminal on your controller.
Can I install this above ground or does it need to be buried?
You can install the valve above ground in a protected area, but most homeowners bury it in a valve box to protect it from sun exposure, lawn equipment, and freezing temperatures. If installing above ground, make sure it’s shielded from direct weather and UV exposure to extend its lifespan.
What happens if the diaphragm or solenoid fails?
Both parts are replaceable without removing the entire sprinkler valve from your system. Order the solenoid (model 57241) or diaphragm (model 57225) separately, shut off water, and swap the part in about 15 minutes. This saves time and money compared to replacing the whole unit.
Is this suitable for large properties with high water demand?
Not really. This valve is designed for residential irrigation systems with standard flow rates and pressure. If you’re managing a large property with 8+ zones or commercial-grade watering needs, you’ll need a larger valve body and higher flow capacity than this 1-inch model provides.
How do I prevent the valve from freezing in winter?
Drain your irrigation system completely before the first freeze, then remove the solenoid and store it indoors. The valve body can stay in place as long as all water is expelled. Failing to winterize properly can crack the valve or damage internal components.
Can this handle low water pressure or well systems?
It can work with lower pressure, but performance depends on your specific setup. The built-in flow control helps, but if your pressure is consistently below 30 PSI, you may experience sluggish zone activation or incomplete coverage. Test it with your system’s pressure and adjust the flow dial accordingly.
